GRUNDFOS SB
The Grundfos SB pump is a submersible booster pump designed for the pumping of clean water for domestic and rainwater applications. The SB submersible pump is silent when submerged and therefore a noiseless alternative to surface mounted pumps. The SB pump is constructed from high quality composite and stainless steel materials that are resistant to corrosion.
Liquid temperature: 0°C to +40°C
pH values: 4-9
Enclosure class: Suitable for in-tank installation (IP68)
Supply voltage: 1 x 240 Volt PE, 50 Hz -10%/+6%
Cable length: 15 m with plug
Maximum installation depth: 10 m
Models: A: with float switch for automatic operation and dry running protection

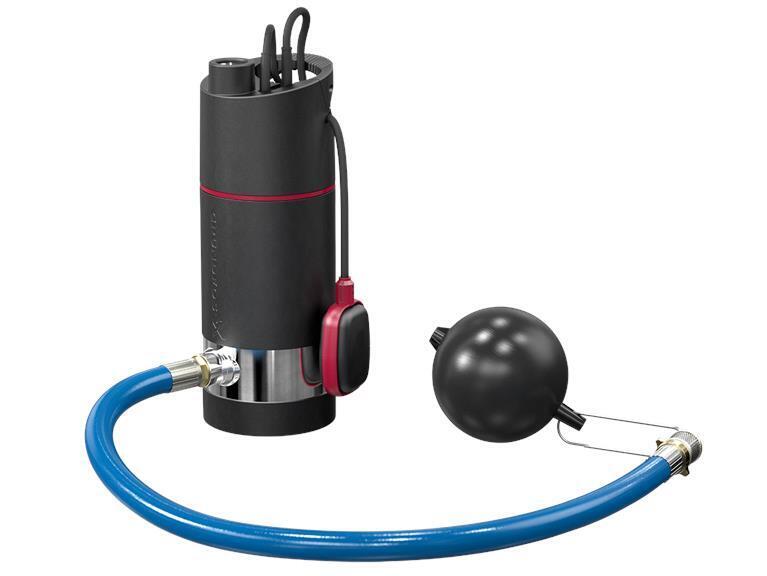

AW: with float switch and floating suction strainer

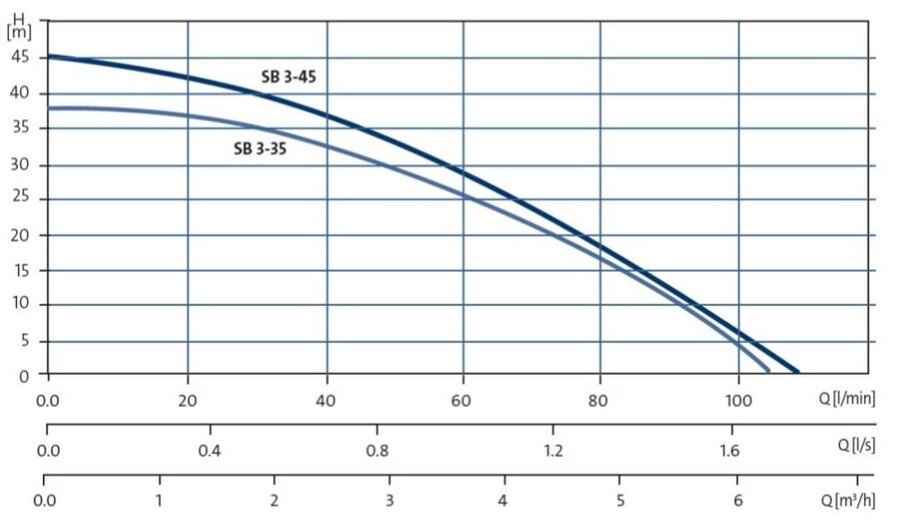

Model P2 [kW] I [A] Outlet Inlet Type Rated Flow [m3/h] Rated Head [m]
SB 3-35 A 0.47 3.5 1" F Strainer 3.01 29.2
SB 3-45 A 0.55 4.0 1" F Strainer 3.01 33.4
SB 3-45 AW 0.62 4.8 1" F Floating Strainer 2.83 30.1
Liquid temperature: 0°C to +40°C
pH values: 4-9
Enclosure class: Suitable for in-tank installation (IP68)
Supply voltage: 1 x 240 Volt PE, 50 Hz -10%/+6%
Cable length: 15 m with plug
Maximum installation depth: 10 m
Models: A: with float switch for automatic operation and dry running protection
AW: with float switch and floating suction strainer
Model P2 [kW] I [A] Outlet Inlet Type Rated Flow [m3/h] Rated Head [m]
SB 3-35 A 0.47 3.5 1" F Strainer 3.01 29.2
SB 3-45 A 0.55 4.0 1" F Strainer 3.01 33.4
SB 3-45 AW 0.62 4.8 1" F Floating Strainer 2.83 30.1
