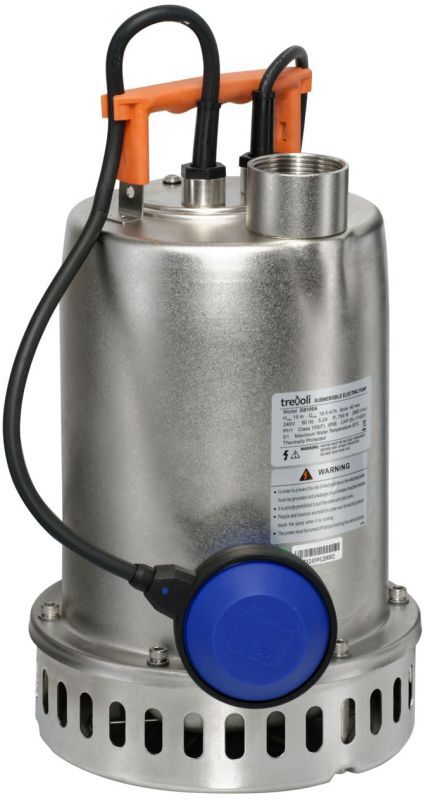

Trevoli DS100A

Trevoli DS100A
The Trevoli DS100A submersible pump are ideal for many applications including drainage, construction, clean, dirty Water and Sea Water. With a solid stainless steel build, it is a heavy duty and durable submersible pump ideal for job site or drainage applications.
RRP:
NZ$ 489.99
Price:
NZ$ 424.99 including GST
DS100A
Size:
[{"code":"DS100A","size":"DS100A","price":369.557,"qty":9999,"pid":5904574,"disabled":false,"imgsrc":"/images/484370/pid5904573/DS100A.jpg","title":"Trevoli DS100A"},{"code":"DS200A","size":"DS200A","price":434.774,"qty":9999,"pid":5904576,"disabled":false,"imgsrc":"/images/484370/pid5904573/DS100A.jpg","title":"Trevoli DS100A"},{"code":"DS45A","size":"DS45A","price":304.339,"qty":9999,"pid":5904577,"disabled":false,"imgsrc":"/images/484370/pid5904573/DS100A.jpg","title":"Trevoli DS100A"}]
Purchase Qty:


Trevoli DS100A

  • Float switch for run-dry protection and automatic level control
  • Built-in thermal overload protection
  • Inlet Strainer
  • Double mechanical seals with oil chamber and lip seal for added protection
  • 10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
  • Can handle up to 10mm Solids

Technical Features

  • Liquid Temperature: 0 – 40°C
  • Protection Class: IP68
  • Maximum Immersion Depth: 5M
  • PH level range of liquid 6-8

Model

hp

kW

Outlet

Amps

Volts

Max Solid

DS100A

1.0

0.7

38mm

5.2

220-240

10mm

 Trevoli DS200A

  • Float switch for run-dry protection and automatic level control
  • Built-in thermal overload protection
  • Inlet Strainer
  • Double mechanical seals with oil chamber and lip seal for added protection
  • 10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
  • Can handle up to 10mm Solids

Technical Features

  • Liquid Temperature: 0 – 40°C
  • Protection Class: IP68
  • Maximum Immersion Depth: 5M
  • PH level range of liquid 6-8

Model

hp

kW

Outlet

Amps

Volts

Max Solid

DS200A

2.0

1.5

38mm

9.0

220-240

10mm

Trevoli DS45A

  • Float switch for run-dry protection and automatic level control
  • Built-in thermal overload protection
  • Inlet Strainer
  • Double mechanical seals with oil chamber and lip seal for added protection
  • 10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
  • Can handle up to 10mm Solids

Technical Features

  • Liquid Temperature: 0 – 40°C
  • Protection Class: IP68
  • Maximum Immersion Depth: 5M
  • PH level range of liquid 6-8

Model

hp

kW

Outlet

Amps

Volts

Max Solid

DS45A

0.3

0.2

32mm

1.9

220-240

10mm

Trevoli_Submersible_Instructions.pdf
