Trevoli SD-250A

Trevoli SD-250A

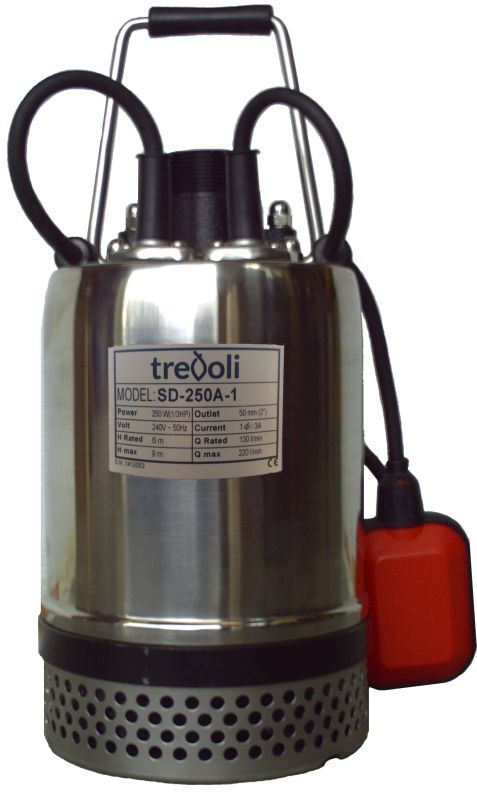

The Trevoli SD-250 are double casing stainless steel submersible pumps. They are built for continuous 24 hour operation. Ideal for industrial use, construction sites, drainage and general dewatering. The SD-250 pumps are heavy duty and reliable.
RRP:
NZ$ 860.00
Price:
NZ$ 749.99 including GST
SD-250A
Size:
[{"code":"SD-250A","size":"SD-250A","price":652.165,"qty":9999,"pid":5904593,"disabled":false,"imgsrc":"/images/484370/pid5904591/SD-250A.jpg","title":"Trevoli SD-250A"},{"code":"SD-400A","size":"SD-400A","price":699.991,"qty":9999,"pid":5904594,"disabled":false,"imgsrc":"/images/484370/pid5904591/SD-250A.jpg","title":"Trevoli SD-250A"},{"code":"SD-750A","size":"SD-750A","price":760.861,"qty":9999,"pid":5904595,"disabled":false,"imgsrc":"/images/484370/pid5904591/SD-250A.jpg","title":"Trevoli SD-250A"}]
Purchase Qty:


Trevoli SD-250

  • Float Switch for Run Dry Protection
  • Integrated stainless steel outer casing and strainer
  • Stainless steel double casing with circumferential liquid flow which allows continuous full load operation even when not fully submerged
  • Double mechanical seals ensure great durability
  • Maximum Depth: 8 meters

TECHNICAL FEATURES

  • Motor Insulation: B Class
  • Liquid Temperature: 5- 60°C
  • Rated Speed: 2900/3450 RPM
  • Protection Class: IP68

Part No.

hp

kW

Outlet

Phase

Voltage

Amps

Max Solid

SD-250

0.3

0.2

50mm

1

220-240

3.0

7mm

 Trevoli SD-400

  • Float Switch for Run Dry Protection
  • Integrated stainless steel outer casing and strainer
  • Stainless steel double casing with circumferential liquid flow which allows continuous full load operation even when not fully submerged
  • Double mechanical seals ensure great durability
  • Maximum Depth: 8 meters

TECHNICAL FEATURES

  • Motor Insulation: B Class
  • Liquid Temperature: 5- 60°C
  • Rated Speed: 2900/3450 RPM
  • Protection Class: IP68

Part No.

hp

kW

Outlet

Phase

Voltage

Amps

Max Solid

SD-400

0.5

0.4

50mm

1

220-240

3.2

7mm

Trevoli SD-750

  • Float Switch for Run Dry Protection
  • Integrated stainless steel outer casing and strainer
  • Stainless steel double casing with circumferential liquid flow which allows continuous full load operation even when not fully submerged
  • Double mechanical seals ensure great durability
  • Maximum Depth: 8 meters

TECHNICAL FEATURES

  • Motor Insulation: B Class
  • Liquid Temperature: 5- 60°C
  • Rated Speed: 2900/3450 RPM
  • Protection Class: IP68

Part No.

hp

kW

Outlet

Phase

Voltage

Amps

Max Solid

SD-750

1.0

0.7

50mm

1

220-240

5.3

7mm

Trevoli_Submersible_Instructions_3_.pdf
