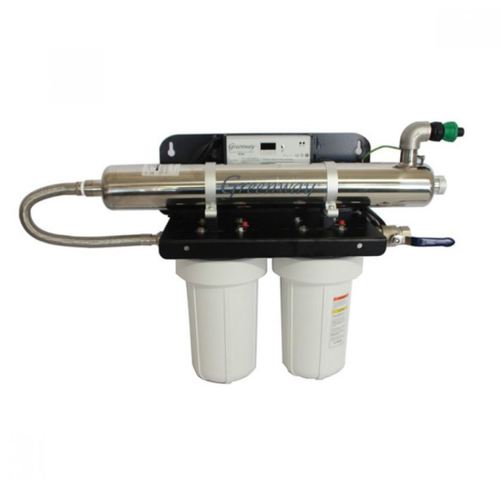

Deluxe 2 housing UV System

Deluxe 2 housing UV System
RRP:
NZ$ 1,598.99
Price:
NZ$ 1,399.00 including GST
UV_OPT_2D
Purchase Qty:


All Geenway UV units carry a 2 year warranty, Double the standard 1 year warranty

This is exclusive to Smart Water & Irrigation Ltd and supersedes all other warranties

How Does Ultraviolet Disinfection (UV) Work?

UV water disinfection is a natural, environmentally friendly process which does not add any chemicals into your water and does not change the water chemistry. Ultraviolet light energy inactivates harmful microorganisms such as bacteria and viruses, effectively preventing them from causing illness. The pathogens are destroyed in the time water passes through the disinfection chamber.

It is necessary for the UV light to have contact with the microorganisms. Water quality will adversely affect the efficacy of any UV disinfection system. Therefore, your source water needs to fall into certain water quality parameters in order for effective UV disinfection to occur. The Greenway® Water Treatment Guide outlines those parameters.

UV Disinfection Systems | Advance Series

Greenway® UV Advance Series Systems have been uniquely developed to combine effective UV disinfection, user-friendly, easy lamp changes and simple periodic quartz sleeve cleaning. In addition, our various compact, high-grade stainless steel chamber sizes and single-ended lamp design provides the customer with system sizing flexibility, offering options for higher flow rates in smaller area applications due to our unique Axial Flow design

Greenway® UV Advance Series systems feature:

  • 99.99% destruction of bacteria (such as E-coli), viruses and protozoan cysts (Cryptosporidium and Giardia
  • Lamp failure and lamp replacement reminder with 7 segment LED countdown display
  • Compact Axial Flow design for reduced footprint and improved disinfection
  • Standard Output or High Output lamp configurations available
  • Electronic controller with universal AC input, constant lamp current and low power consumption
  • Combination 3/4” - 1.0” inlet/outlet ports for easy installation
  • CSA certified
  • Hard glass, long life UV lamp for consistent maximum UV output over entire lamp life
  • No chemicals added to water and no water chemistry change- environmentally friendly
  • Low maintenance and easy servicing
  • Range of sizes to meet flow rate requirements

Rated Service Flow 58 LPM @ 30mj/cm2

Power Input110-240 V, 50/60 Hz
Operating Pressure Range0-100 PSI
Feed Water Temperature Range40-99˚F (4-37˚C)
Ambient Temperature Range36-105˚F (2-40˚C)
Inlet Port Size 1" Female
Outlet Port Size 1" Female
Minimum Distance from Combustible Materials6" (15 cm)
Chamber Material304SS
